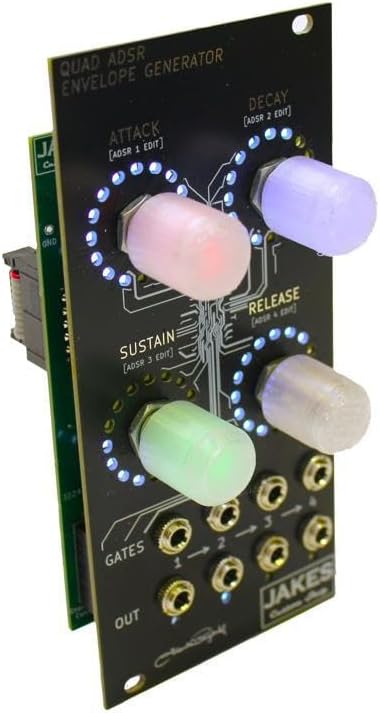

Quad ADSR Envelope Generator Eurorack Module

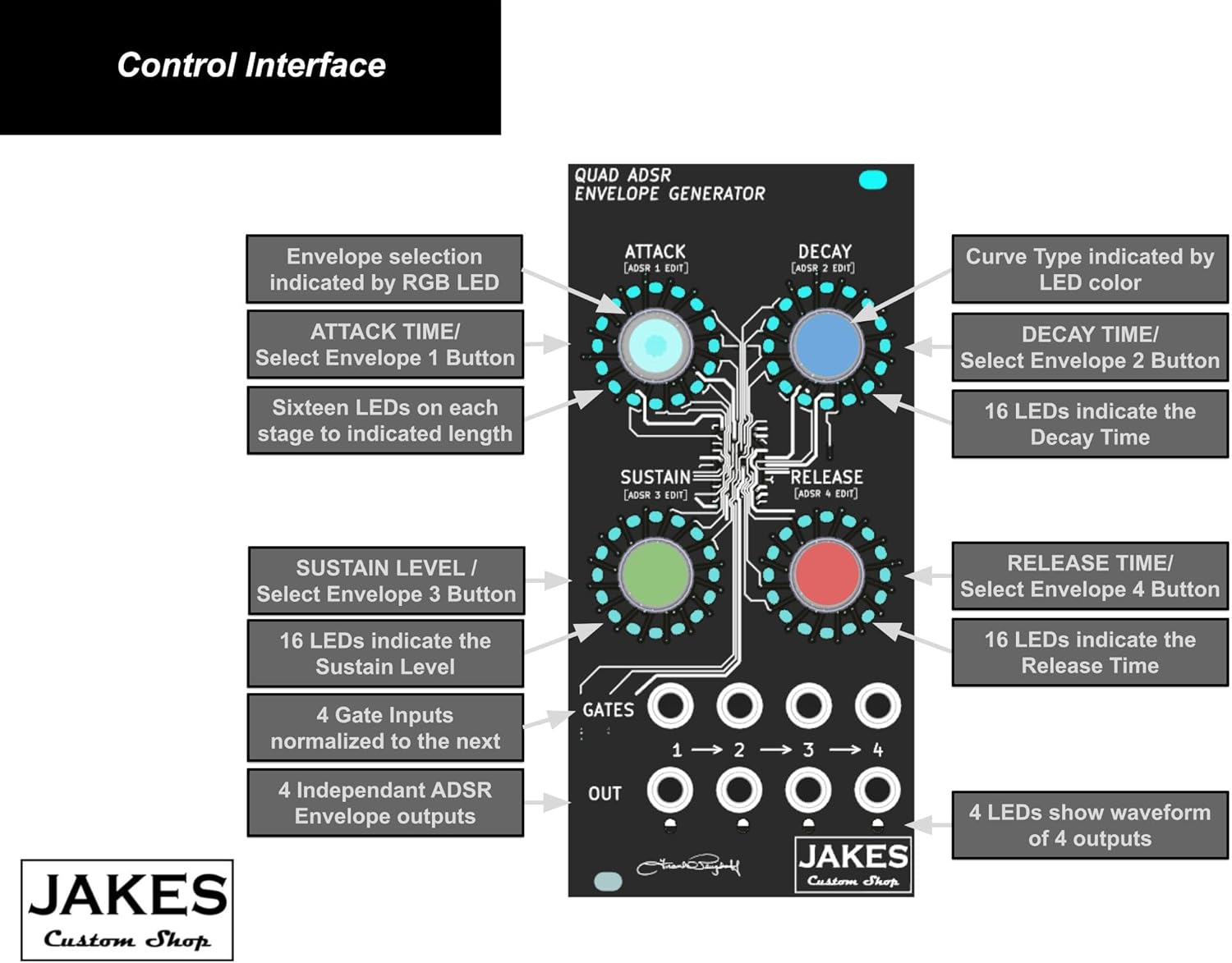

Harness the power of four independent envelopes in a compact 12HP module. Fine-tune your sound with macro editing by scaling multiple envelopes simultaneously. Choose from exponential, ramp, or logarithmic curves to shape your audio. Dive deep into attack, decay, sustain and release parameters for unparalleled control. Using advanced Rotary Encoder technology, you can make precise changes to shorter time scales and macro changes to long envelopes. Why four envelopes in 1 module? Any standard synth voice requires both a filter and an amplifier. These two elements require independent envelope gates to perform at their best. By implementing 4 envelopes into one module, you can pump out two fully independent voices in a quarter of the HP

• Generate 4 unique curves with four independent envelope outputs.
• Scale multiple envelopes at once with Multi-Envelope Selection.
• Customize your sound with three Curve Types: Ramp, Exponential, and Log.
• Synchronize gates with normalized inputs for multi-stage synth voices.
• Stage length from 7mS to 7 days.
• Modulate curve speed with the CV optional Expansion Module.
• +12V: 200mA, +5V: 0mA, -12V:100mA
• 3Ux12HP
